CAD Link

"Transfer Cross-Sections and Elevations to CAD"

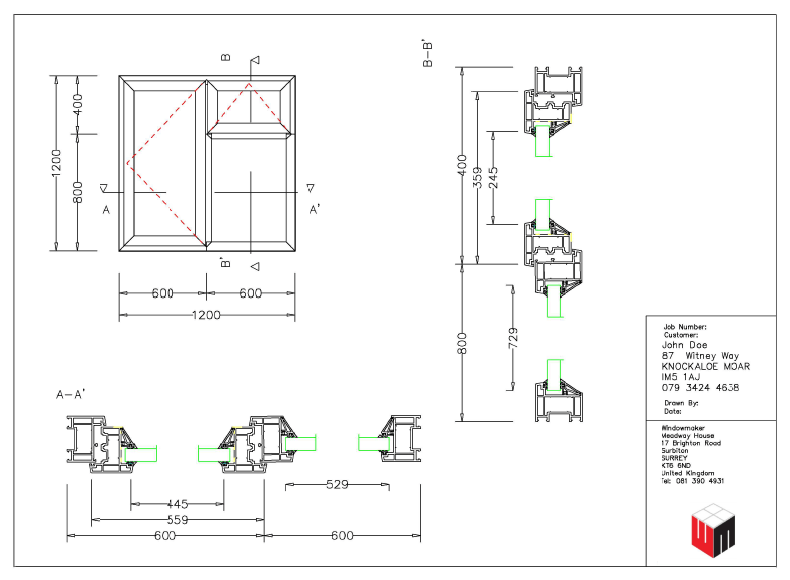

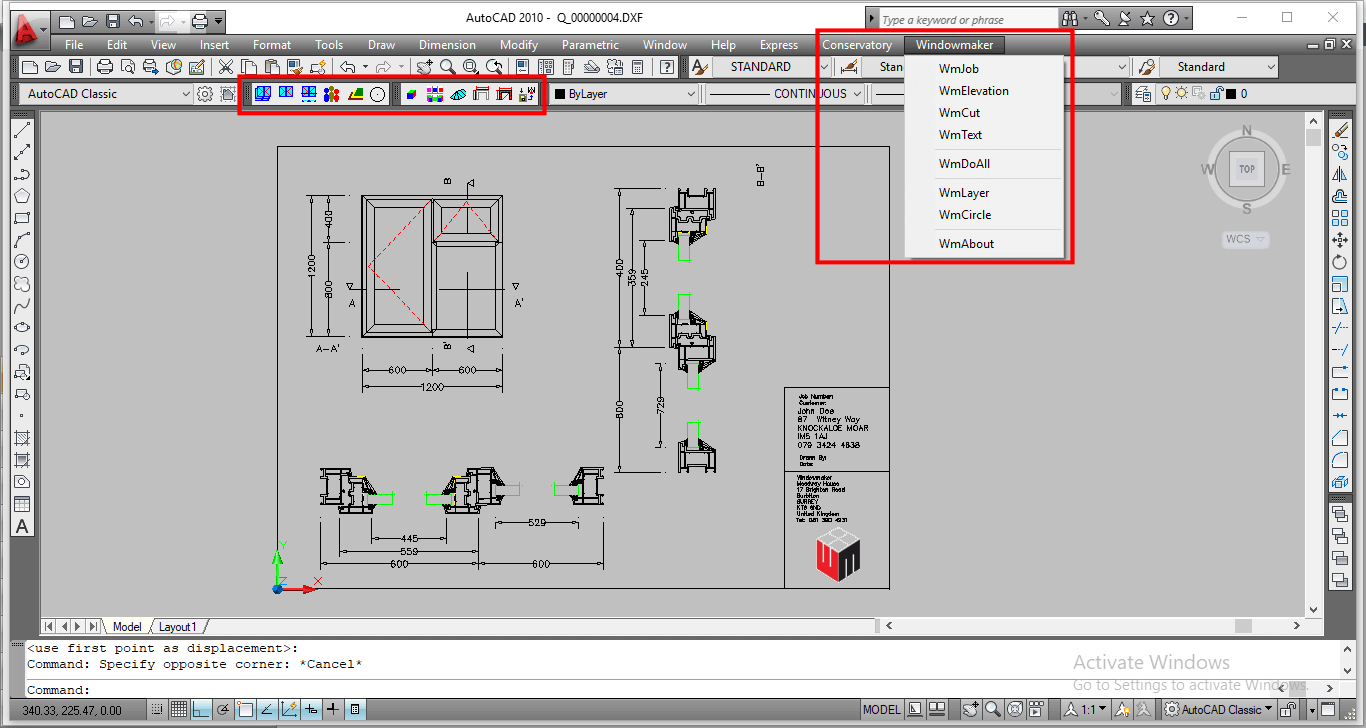

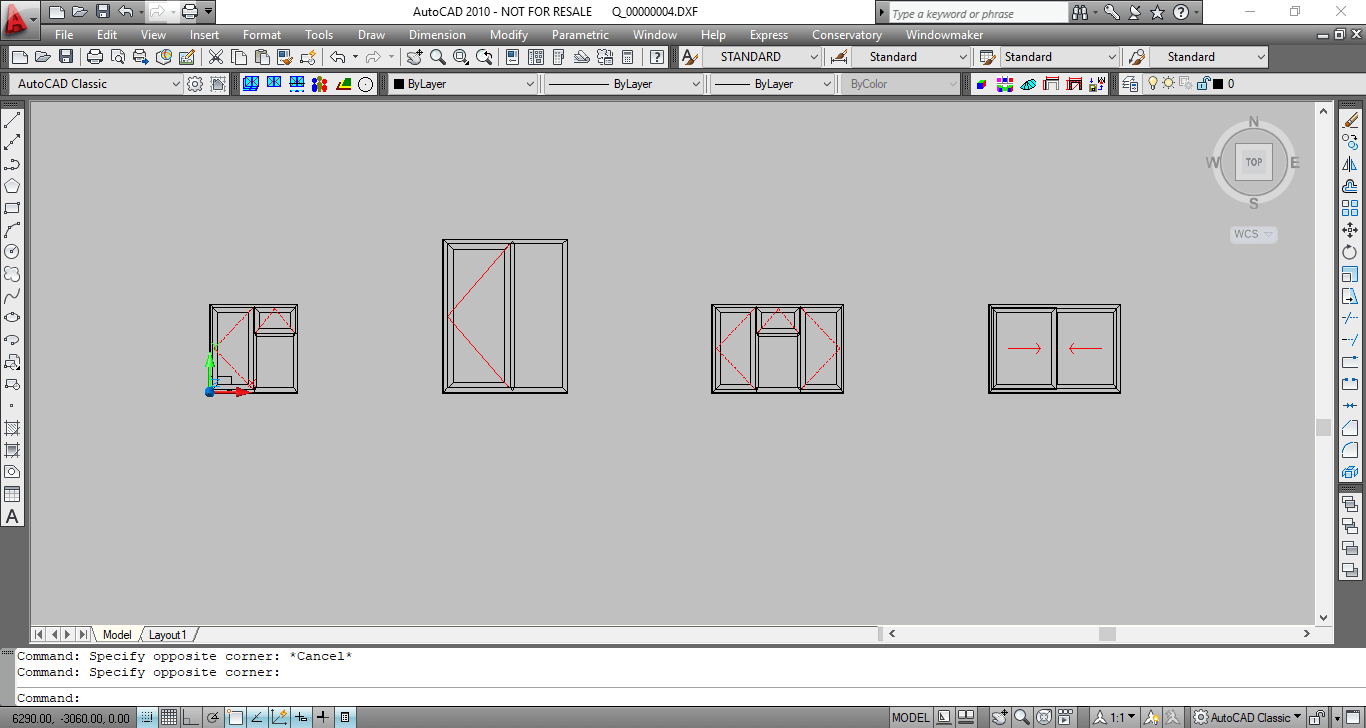

This option allows you to transfer the elevation detailing of the product exported from Windowmaker to CAD. Designs can be exported from Windowmaker as DXF files, with additional options to define the scale and dimension line offsets for elevation. All the possible horizontal and vertical cut through section details for the Sales Line elevations can be extracted.
